Steam Hose
Description

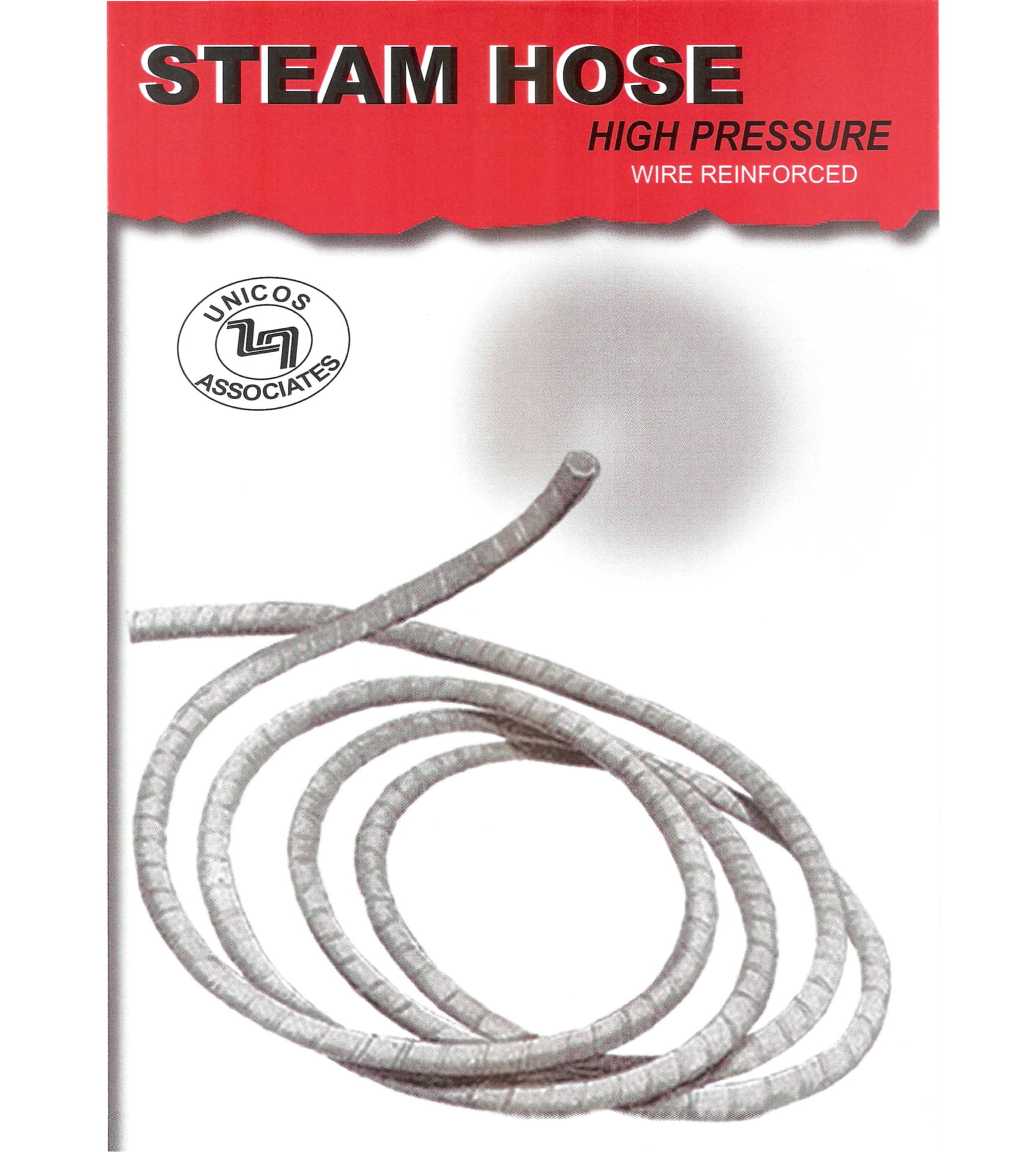

“UNICOS” SUPER SATURATED STEAM HOSE APPLICATION: These are used for all applications involving supply of super saturated steam in dairies, paper mills, foundries, sugar mills and fertilizer plants etc. These hoses conist of special elastomer (EPDM) for excellent resistance to high pressure steam at a temperature of 150 to 300 degrees F and have wire braided reinforcement.
SPECIFICATION : CONFORMS TO IS:10655/1983 TYPE 2, 3 & 4
| SIZE(ID) | NUMBER OF BRAID / WORKING PRESSURE | |||
| MM | INCH |
TYPE – 2 |
TYPE – 3 |
TYPE – 4 |
| 12.5 | 1/2″ |
1 |
1 |
2 |
| 20.0 | 3/4″ |
1 |
1 |
2 |
| 25.0 | 1″ |
1 |
1 |
2 |
| 31.5 | 1-1/4″ |
1 |
1 |
2 |
| 38.0 | 1-1/2″ |
1 |
1 |
2 |
| 50.0 | 2″ |
1 |
1 |
2 |
