Oil Hoses
Description

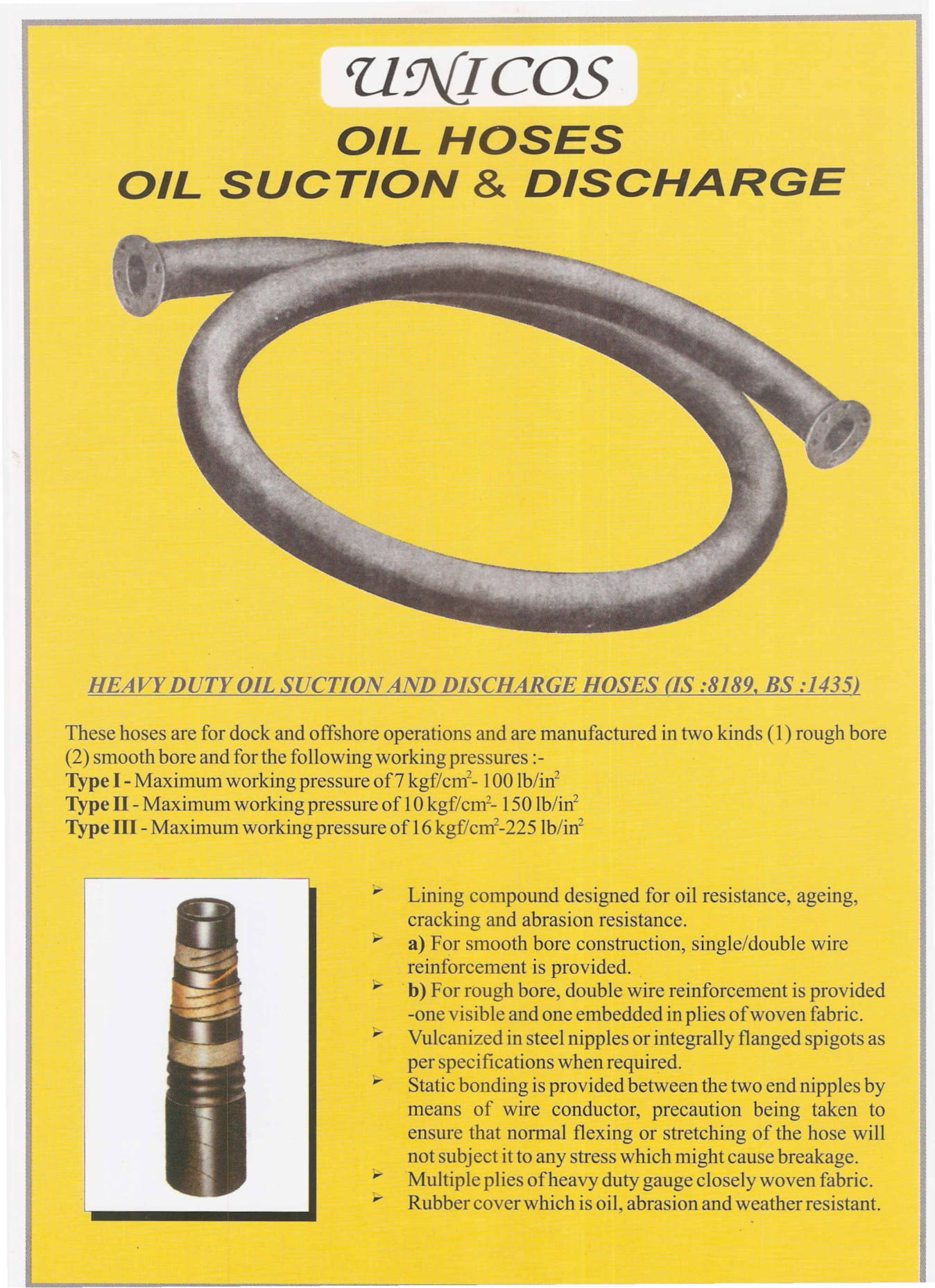

“UNICOS” OIL SUCTION AND DISCHARGE HOSE (HEAVY DUTY)
APPLICATION: These hoses are specially designed and built for loading & unloading petroleum products from tankers and barges in refineries and oil installations for dock and offshore operations.
Manufactured in two kinds viz. Rough and smooth bore and are usually supplied with built-in MS flanges and nipples. These hoses are best suited for bulk unloading of edible oils, palmoline, fatty acid oils, cbfs feedstock, mollasses, phenol and hazardrous liquid cargo in bulk handling units at ports and are prefered due to the ruggedness & safe operation of hose in severe working conditions.
| SPECIFICATION : CONFORMS TO IS:8189/1996 TYPE 1, 2 AND 3 | ||||||
| SIZE(ID) | WORKING PRESSURE | |||||
| MM | INCH | TYPE-1 KG/CM2 | TYPE-2 KG/CM2 | TYPE-3 KG/CM2 | ||
| 38.0 | 1-1/2″ | 7.00 | 10.00 | 15.00 | ||
| 50.0 | 2″ | 7.00 | 10.00 | 15.00 | ||
| 63.0 | 2-1/2″ | 7.00 | 10.00 | 15.00 | ||
| 75.0 | 3″ | 7.00 | 10.00 | 15.00 | ||
| 100.0 | 4″ | 7.00 | 10.00 | 15.00 | ||
| 150.0 | 6″ | 7.00 | 10.00 | 15.00 | ||
| 200.0 | 8″ | 7.00 | 10.00 | 15.00 | ||
| 250.0 | 10″ | 10.00 | 15.00 | |||
| 300.0 | 12″ | 15.00 | ||||
